Rinnai Hot Water Heat Pumps
Efficient, reliable hot water, designed for New Zealand homes
Rinnai HydraHeat® hot water heat pumps provide outstanding energy savings while delivering fast and reliable hot water when you need it most. Using heat from the air instead of generating it directly, HydraHeat® technology can reduce your water heating power use by up to 75%, lowering your power bill and your home’s carbon footprint.
At Jason Brown Plumbing & Gas, we supply and install Rinnai hot water heat pumps across the Wellington region, with expert guidance from start to finish.
HydraHeat® Integrated – Smarter hot water
Save up to 75% on your water heating costs with Rinnai’s all-in-one heat pump, designed and built in New Zealand for Kiwi conditions.
75% energy savings
All-in-one system, easy install
Quiet & reliable operation
Built for NZ homes
HydraHeat® Split – Flexible hot water
A versatile system that works with new or existing cylinders, delivering rapid recovery and efficient hot water whenever you need it.
Fast hot water recovery
Retrofit or new build ready
Smart timer for off-peak use
Compact, quiet outdoor unit
Why choose Rinnai HydraHeat®?
✔ Up to 75% savings on hot water energy use
✔ Fast top-down recovery — hot water ready instantly from the top of the cylinder
✔ Quiet outdoor units — as low as 45 dB(A)
✔ Powered by R290 natural refrigerant (low GWP, high efficiency)
✔ Designed and built for NZ climates, including frosty conditions
✔ Smart operating modes that adapt to your household
✔ Optional backup electric element for peak demand periods
✔ 5–7 year warranties depending on model
Ideal for new builds, retrofits, and families who use lots of hot water.
Our two recommended Rinnai systems
At Jason Brown Plumbing & Gas, we recommend and install Rinnai HydraHeat® systems, designed in New Zealand for local conditions. Here’s what makes them the smart choice:

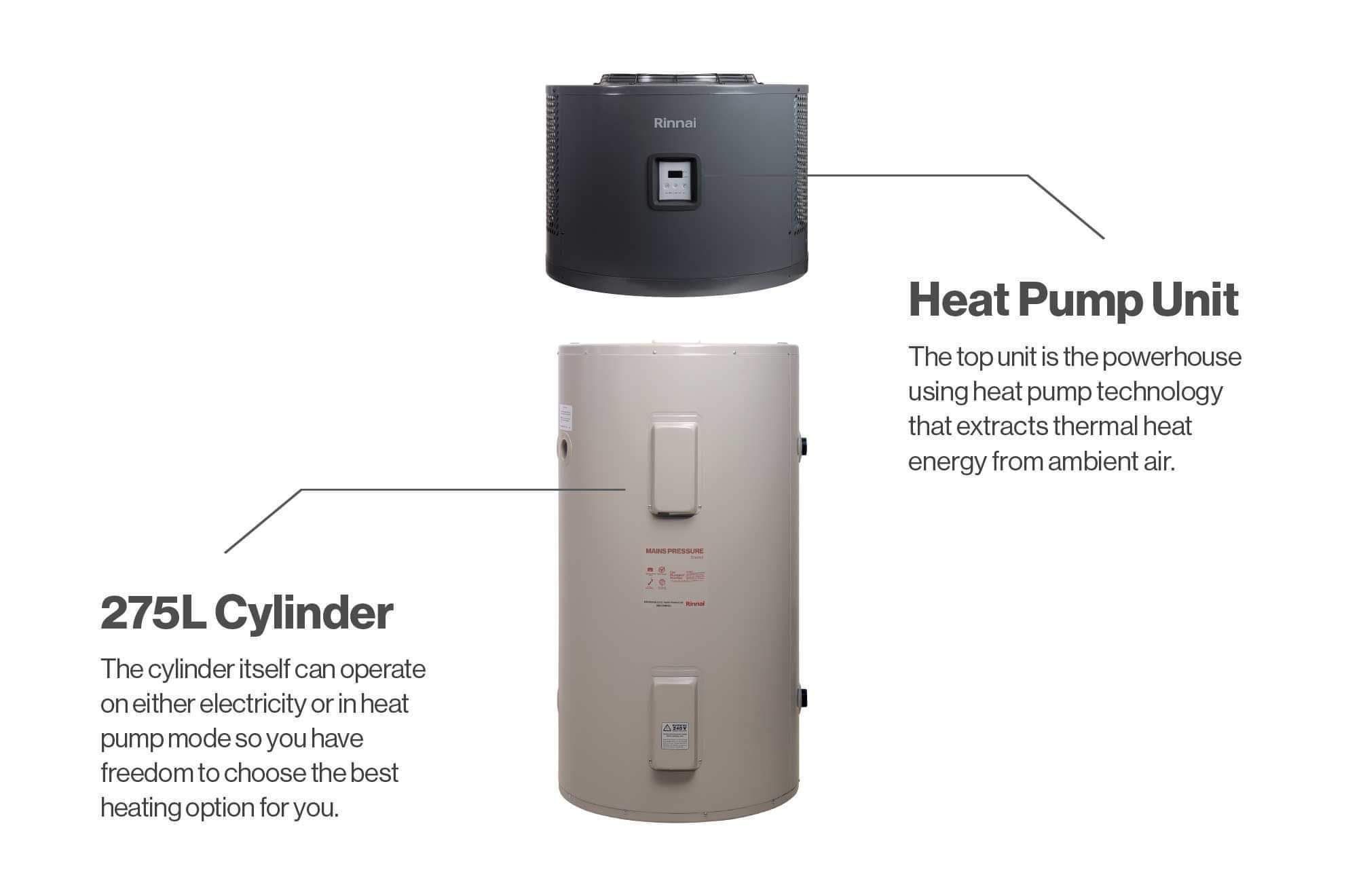

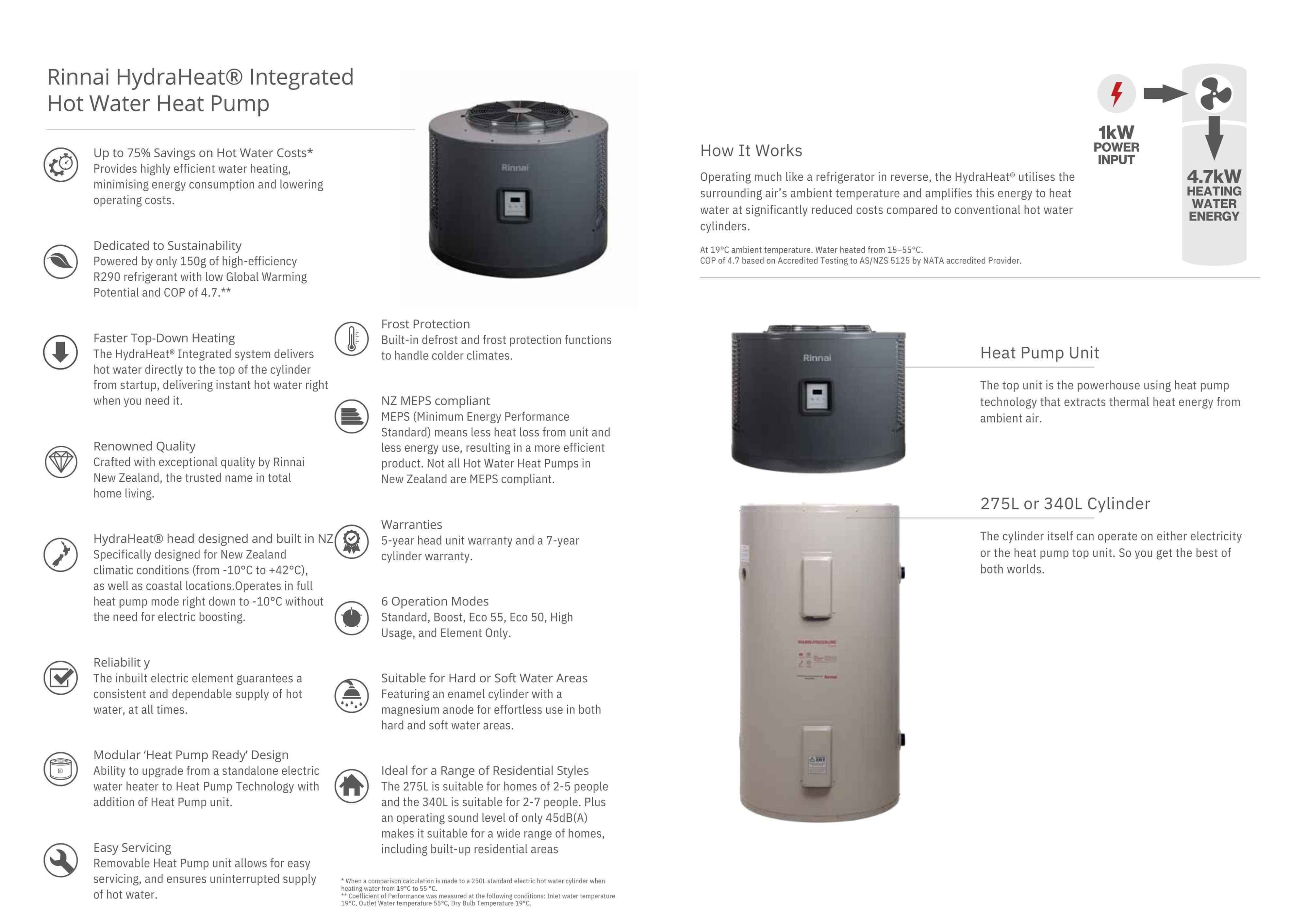

HydraHeat® Integrated
All-in-one system for maximum efficiency
The Integrated model combines the outdoor heat pump and indoor cylinder, perfect when replacing an old hot water system or building new.
Key features:
Energy savings up to 75%
Fast top-down heating — ideal for families and larger households
R290 refrigerant for strong efficiency + sustainability
Operates from -10°C to +42°C — suitable for Wellington’s climate
Quiet operation at only 45 dB(A)
Built-in frost protection
6 smart modes: Standard, Boost, Eco 55, Eco 50, High Usage & Element Only
Cylinder sizes:
275L — great for 2–5 people
340L — best for 2–7 people
Warranties: 5-year heat pump, 7-year cylinder
Best for full system upgrades, renovations and new builds.

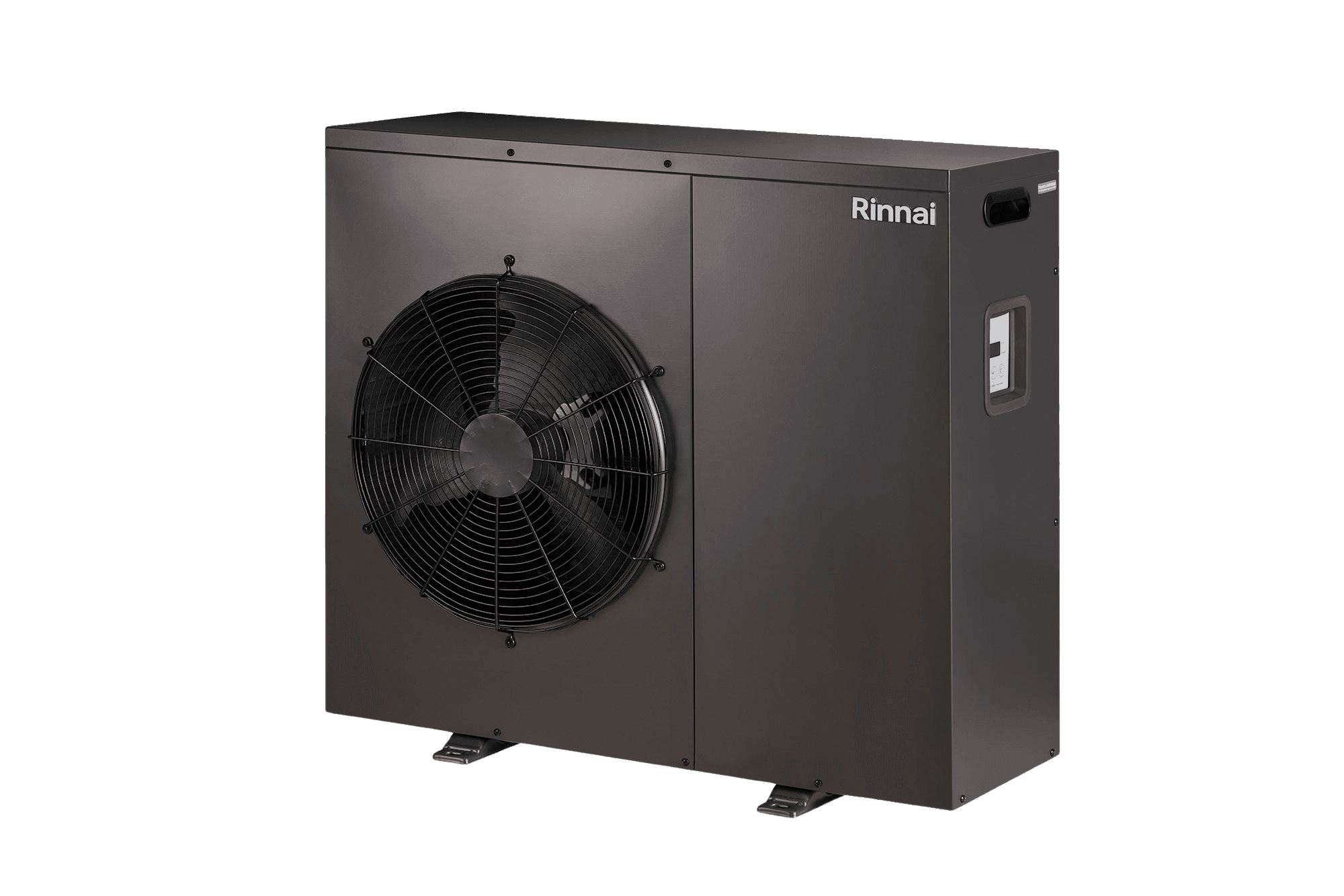

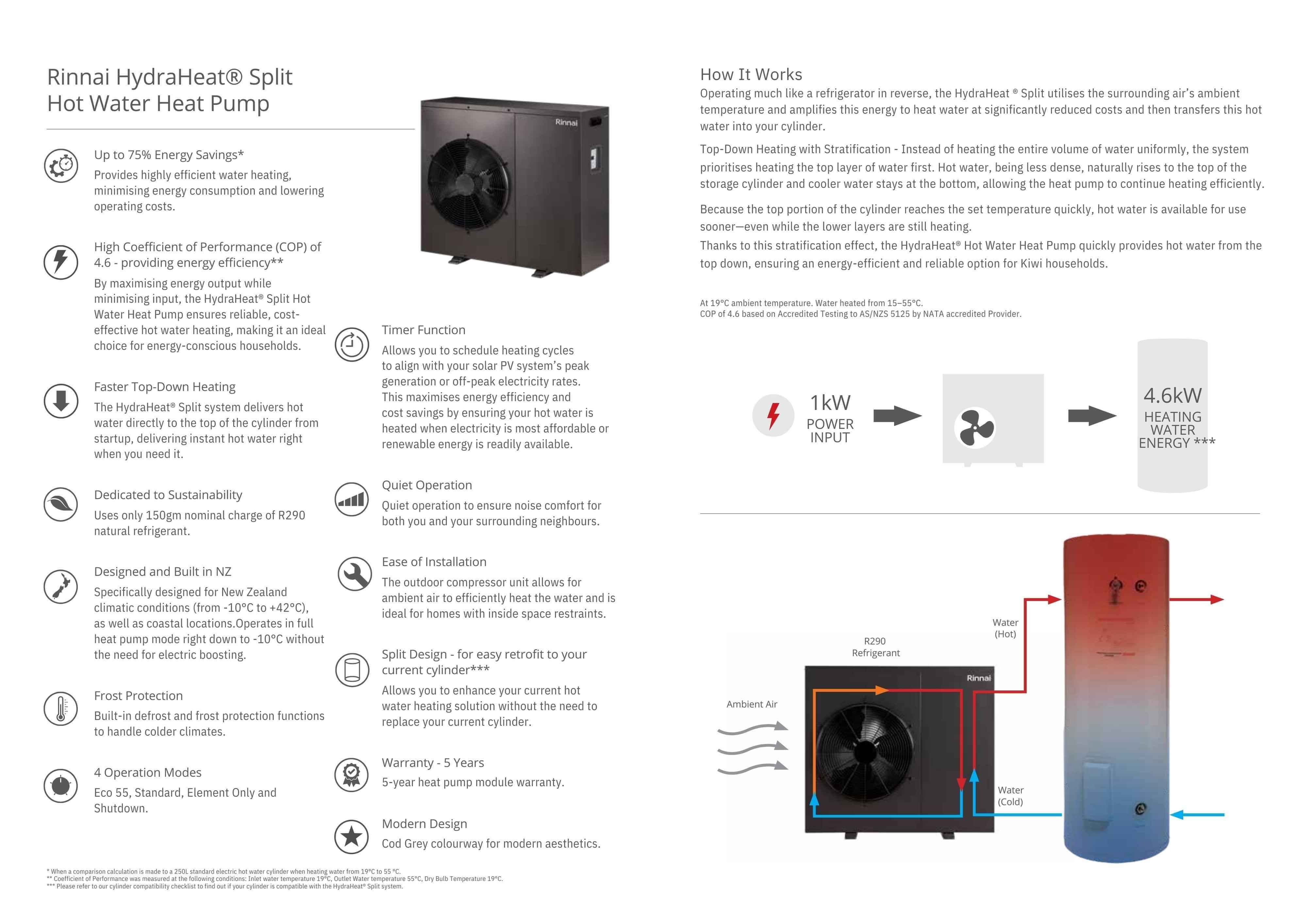

Rinnai HydraHeat® Split
Flexible option for existing cylinders
The Split system separates the outdoor heat pump unit from your indoor cylinder. If your cylinder meets compatibility standards, this is a cost-effective upgrade.
Key features:
Energy savings up to 75%
Top-down recovery means hot water sooner, even while the lower cylinder heats
Solar + off-peak timer scheduling
Quiet outdoor unit for flexible placement
Small footprint — great where indoor space is limited
Designed for NZ coastal & cool climates (-10°C to +42°C)
4 operating modes including Eco & Standard
Warranty: 5-year heat pump module
Best for retrofits and tight spaces.

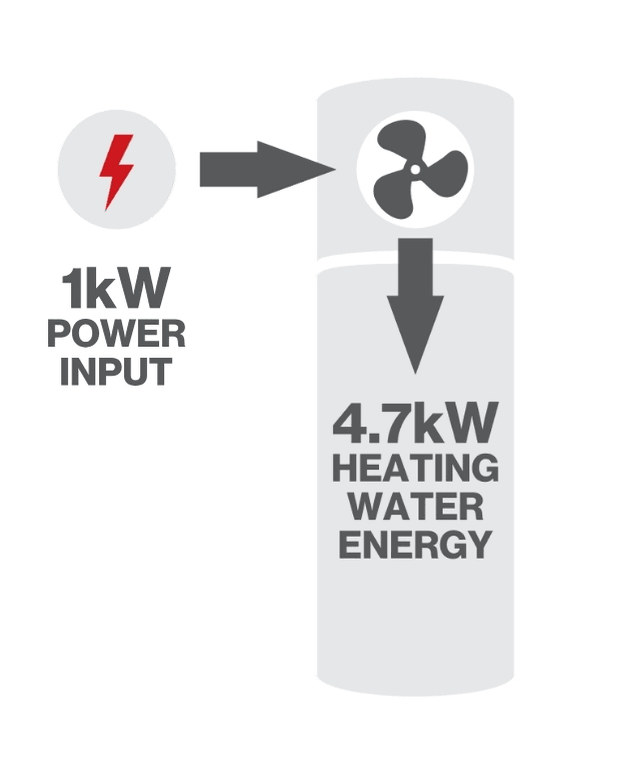

How does a Rinnai heat pump work?
A heat pump works like a refrigerator in reverse — extracting heat from the air and transferring it into your water cylinder.
This means:
1 kW of power input
produces up to4.6–4.7 kW of heat energy output
= much lower running costs and a more sustainable hot water system.
Suitable for Wellington homes
Rinnai systems are made specifically for New Zealand conditions, including:
✔ Cold winter mornings
✔ Coastal environments
✔ Varying household water demand
✔ Hard or soft water areas
✔ Indoor or outdoor cylinder placement
We’ll help you choose the right configuration for your home and lifestyle.
Why Choose JB Plumbing for Energy-Efficient Hot Water Heat Pump Systems?
Award-Winning Expertise
Named 2025 Master Plumber of the Year—trusted for innovative, high-quality plumbing solutions.Smarter Hot Water
We supply and install heat pump systems that reduce energy use and lower your power bills.Qualified Installers
Fully licensed plumbers and gasfitters with the know-how to ensure your system runs efficiently and safely.Long-Term Savings
Heat pumps are a smart investment—we help you choose the right system to suit your home and water usage.Wellington’s Trusted Team
Proudly serving the region since 2005 with honest advice and expert installation.
What Everybody Should Know About Hot Water Heat Pumps.
Hot water heat pumps are quickly gaining popularity for their efficiency, cost savings, and environmental benefits. But what exactly are they, and how do they differ from traditional water heaters?
5 things you must know about hot water heat pumps.
1. How Hot Water Heat Pumps Work
A hot water heat pump extracts heat from the surrounding air and transfers it to heat water. Unlike conventional water heaters that generate heat directly, heat pumps use a refrigerant cycle similar to air conditioners but in reverse. This process requires less energy, making it an energy-efficient way to heat water.
Key Components: Heat pumps consist of an evaporator, compressor, condenser, and expansion valve. These work together to transfer heat from the air to the water tank.
Efficiency Advantage: For every unit of electricity consumed, heat pumps can produce up to three to four units of heat, significantly more efficient than electric resistance heaters.
2. Energy and Cost Savings
Switching to a hot water heat pump can lead to substantial energy and cost savings over time. Traditional electric water heaters can be costly to operate due to their high electricity consumption. In contrast, heat pumps use much less energy.
Cost Comparison: While the upfront cost of a heat pump may be higher, the long-term savings on electricity bills make up for it. According to industry estimates, heat pumps can reduce water heating costs by up to 60%.
Return on Investment (ROI): For an average household, the ROI for a hot water heat pump can typically be achieved within a few years through energy savings alone.
3. Environmental Impact
Hot water heat pumps are not only efficient but also environmentally friendly. Because they use ambient air as a primary heat source, they produce fewer greenhouse gas emissions than traditional electric or gas water heaters.
Lower Carbon Footprint: By reducing electricity consumption, heat pumps contribute to lower CO2 emissions, helping combat climate change.
Sustainable Energy Use: Heat pumps align with renewable energy goals, especially if your home uses solar or wind energy to power the heat pump.
4. Maintenance and Longevity
Heat pumps are generally durable, but they do require some maintenance to operate at peak efficiency.
Routine Maintenance: The main tasks include keeping the coils and filters clean and checking for any refrigerant leaks. Scheduling an annual professional inspection can help maintain efficiency and prevent issues.
Expected Lifespan: A well-maintained heat pump can last 10-15 years or longer, outlasting most traditional water heaters.
5. How to Choose the Right System
Not all heat pumps are created equal, and the best choice depends on various factors, such as your climate, household size, and hot water needs.
Climate Considerations: Heat pumps work best in moderate to warm climates, but some models are designed to operate efficiently even in colder conditions.
Household Needs: Choose a heat pump with the right capacity. Larger families will need a bigger unit, while smaller households can benefit from a compact model.
Noise Levels: Some heat pumps can be noisy. Look for models that advertise quiet operation if noise is a concern.
Installation & servicing by the experts
Our team of qualified plumbers and gasfitters will:
Assess your current hot water system
Recommend the right model & size
Install placement to minimise noise and maximise efficiency
Ensure correct electrical + plumbing setup
Provide maintenance support long-term
Local team. Reliable products. Hot water you can count on.
Ready to upgrade to a more efficient Rinnai hot water system?
Talk to the experts at Jason Brown Plumbing & Gas.
- OUR OPERATION
3 Reasons To Call Us
Superior Workmanship
Choose our plumbers/drainlayers and gas fitters for superior workmanship backed by a 2 year “Done Right First Time” Guarantee.
On Time & On Budget
Know your project is running to schedule with progress updates from our full time office staff. Each visit is confirmed via GPS tracked vehicles.
Ready For Your Call
Our office staff are ready to take your call now and ensure your job runs smoothly from first call to quoting, job completion and invoicing.
Frequently Asked Questions
Does a Rinnai heat pump work in winter?
Yes — both models operate efficiently down to -10°C, ideal for Wellington’s colder months.
Can I use my existing cylinder?
Often yes — if compatible. We can check this during a site visit.
How long does installation take?
Typically half to a full day, depending on your setup.
How much can I save?
Most homes save 60–75% on water heating costs — one of the biggest household energy expenses.
Is it noisy?
No — the outdoor unit runs at around 45 dB(A) (about the same as a fridge).
Do I still get hot water if demand is high?
Yes — systems include a backup electric element for peak times.
